Gear Shaper Cutter Manufacturers

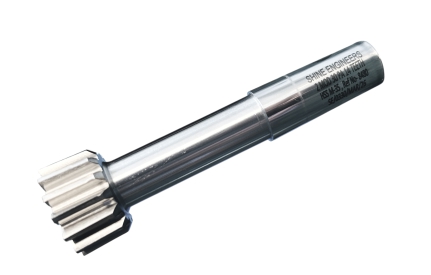

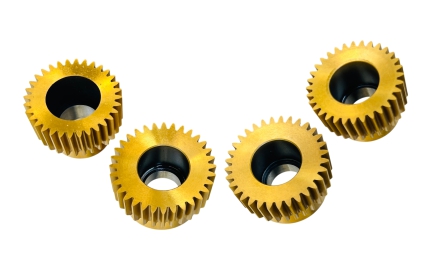

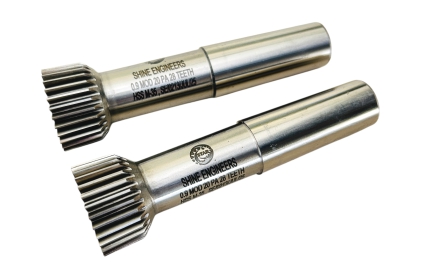

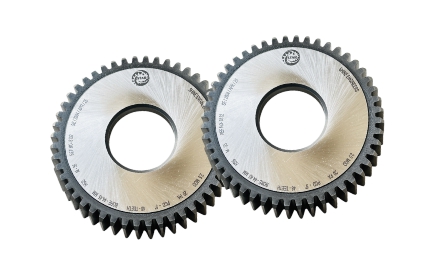

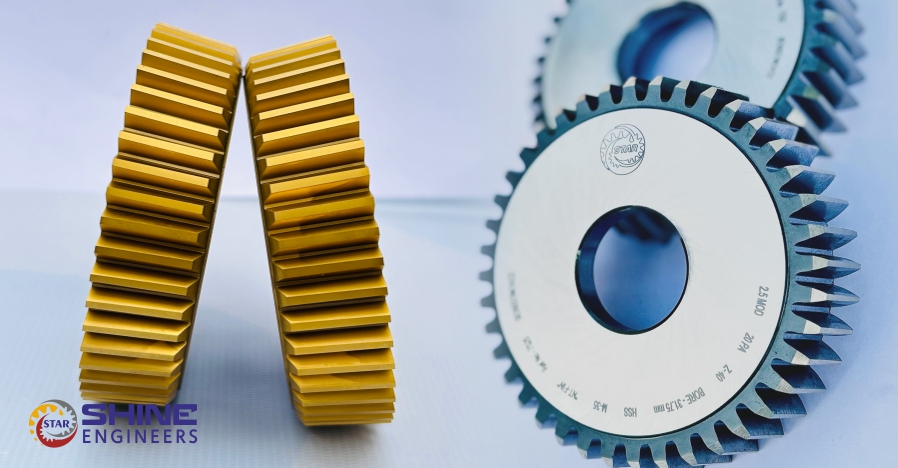

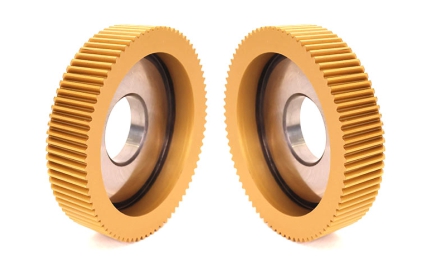

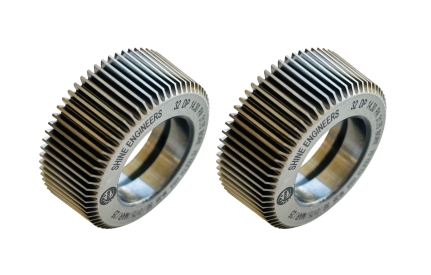

SHINE ENGINEERS manufactures high-precision Gear Shaping Cutters in Module, DP, and CP series for a wide range of gear cutting applications. Our cutters are suitable for both Spur and Helical Gear shaping operations and are available in Disc, Hub, and Shank type configurations.
Manufactured using premium-grade materials such as M2, M35, M42, and ASP 2030, these cutters are produced with accuracies conforming to DIN 1829 standards in Class 'AA’ and Class 'A’. Depending on customer requirements, the cutters can also be supplied in Disc, Shank, Hub, and Extended Back Boss (EBB) types.
We offer customized profile features including Semi-Topping, Protuberance, Topping, and Tip Relief to ensure optimum gear performance and machining efficiency.
Technical Specifications:
- Module (DP) Range: 0.5 – 16 Module (DP 50 – 0.85)
- Diameter Range: 10 – 250 mm
- Accuracy: Certified Class AA & A as per DIN 1829
- Materials: M2, M35, M42 & ASP 2030
- Available Coatings: TiN (Titanium Nitride), TiAlN (Titanium Aluminum Nitride), AlCrN (Aluminum Chromium Nitride), Specialized application-specific coatings.
Engineered for precision finishing, durability, and enhanced gear performance, our Gear Shaving Cutters are ideal for high-accuracy gear manufacturing applications across multiple industries.
